Vibratory Land Leveling Machine Concrete Laser Screeds
so as to achieve high-precision and rapid concrete leveling, saving time and labor, and is applicable to the construction of workshops
Submit
PRODUCT DESCRIPTION

Key attributes

Other attributes

Applicable Industries
Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Other


Weight (KG)
1000


Showroom Location
None


Video outgoing-inspection
Provided


Machinery Test Report
Provided


Marketing Type
New Product


Warranty of core components
6 Months


Core Components
PLC, Gearbox, Motor


Place of Origin
Shandong, China


UNIQUE SELLING POINT
Concrete Floor Self-leveling


Condition
New


Warranty
1 Year


Brand Name
JIUBANG


Laser Control System
Microcomputer Scan


Drive
Full Hydraulic Drive


Turn
4 Wheels Turning


Leveling
Microcomputer Automated Scanning


Packaging and delivery

Packaging Details
Comply with Export Packaging Requirements


Port
Tianjing, Lianyungang, Qingdao, Shanghai port


Supply Ability

Supply Ability
1000 Unit/Units per Year
Overview
Products Description

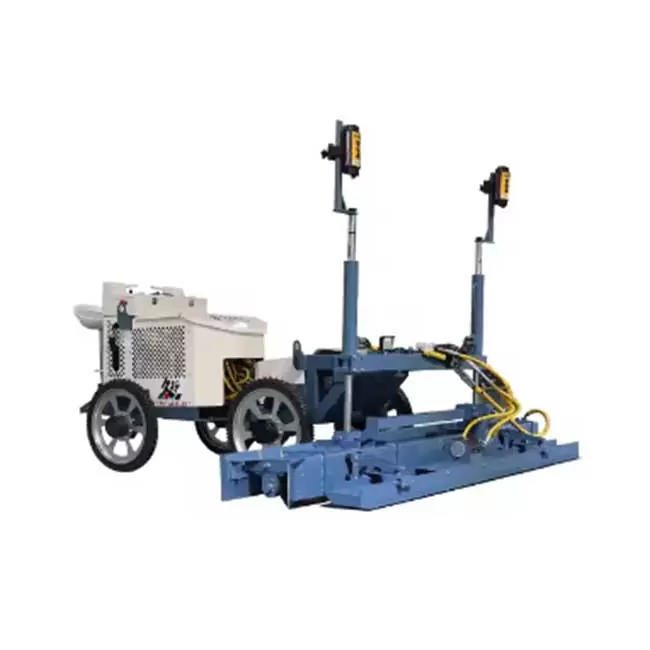

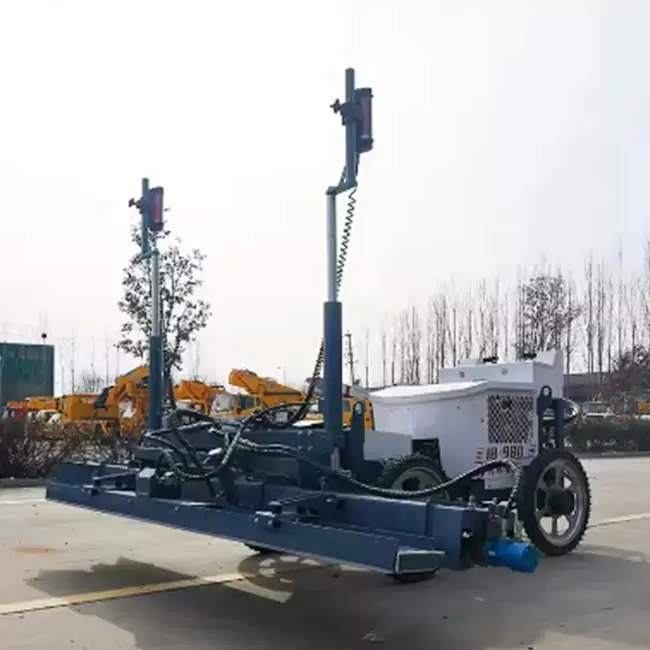

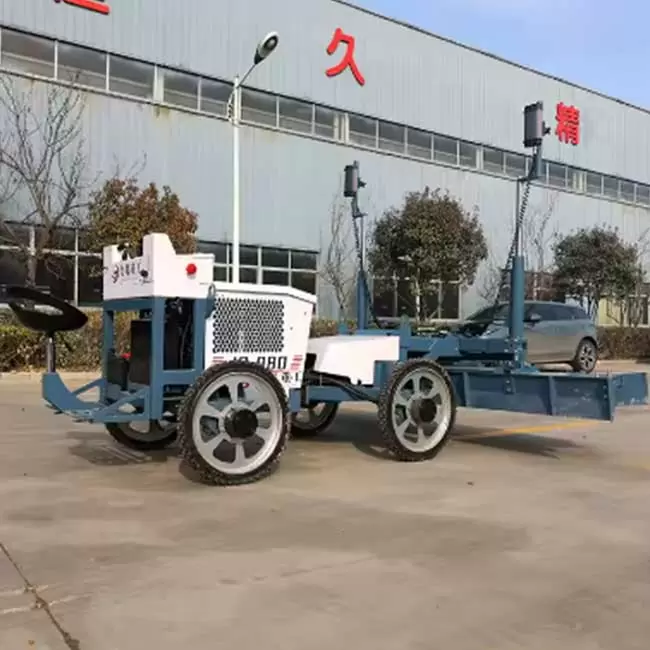

The Jiubang laser screed machine can control the leveling head in real time through the laser receiver, so as to achieve high-precision and rapid concrete leveling, saving time and labor, and is applicable to the construction of workshops, shopping malls, warehouses and other large areas of cement concrete floors.

AUTOMATIC LEVELING DURING CONSTRUCTION

Real-time control and automatic leveling of laser measurement and control system

RAPID CONSTRUCTION AND ONE-TIME FORMING

Flexible operation, high efficiency and small error
Product Paramenters
Engine model
Brigg & stratton 38E3
Engine type
Air-cooled, 4-stroke, double-cylinder
Engine power
22.8 Kw / 31 HP
Fuel
Gasoline
Fuel tank
20 L (Construction duration 8 hours)
Hydraulic oil tank
35 L
Laser control system
Danfoss Laser Control System
Laser transmitter
Swiss Leica transmitter
Laser transmitter
Swiss Leica receiver
Control effect
Plane, Slope, Double slope (3D)
Control mode
Microcomputer laser scanning
Paving method
Hydraulic mixing cage paving
Shock plate width
3000 mm
Screed thickness
60 - 300 mm
Vibration mode
Hydraulic vibration
Exciting force
2000 N
Drive mode
Reducer motor integrated
Walking speed
0 - 4 Km/h (Speed adjustable)
Tyre
Solid anti-skid and stab-resistant tire (Optional wide tire)
Dimensions
3300 x 3460 x 1650 mm
Weight
1000 Kg
Details Images


01

CONTROL SYSTEM
Monitor the working status in real time to ensure that the overall elevation of the ground is consistent
02

LASER SYSTEM
Laser automatic leveling, automatic elevation


03

VIBRATING PLATE
Alloy material, widened and thickened, more stable work

04

HIGH-FREQUENCY VIBRATOR
High frequency, large amplitude, smooth appearance after construction



05

STIRRER
Make concrete mixing more uniform

06

TYRE
Solid anti-skid and stab-resistant tires, optional wide tires


MORE DETAILS

More real details photos

PRODUCT PHOTOGRAPH

More real product photos
Company Profile
Jining Jiubang Construction Machinery Equipment Co., Ltd., located in Jining, Shandong Province, the birthplace of Chinese Confucian culture, is a model enterprise in the heavy machinery manufacturing industry, focusing on the R&D, design and production of aerial work vehicles, truck mounted crane, folding boom cranes, spider crawler cranes and other products. At present, the company covers an area of 60,000 square meters, with laser cutting machines, bending machines, automatic digital processing equipment, etc., and has passed the ISO9001 international standard quality management system certification. Jiubang committed to developing high-tech products, has a number of technical patents, and has introduced the technology of Rexroth, Harvey, Siemens, Schneider and Mitsubishi to provide customers around the world with better products and services.
Main products: 21m, 23m, 26m, 27m, 28m, 32m, 36m, 40m, 45m, 50m aerial work vehicle, 32m aerial ladder trucks, self-propelled aerial work vehicle, truck mounted crane, folding boom crane, spider crawler crane, steel grabbing machine, laser leveling machine, etc.
